ROV tether is a high-quality tether designed specifically for remotely operated submersibles and other subsea applications.
Model number: PDK81600-3×2×26AWG-50KG-DJ

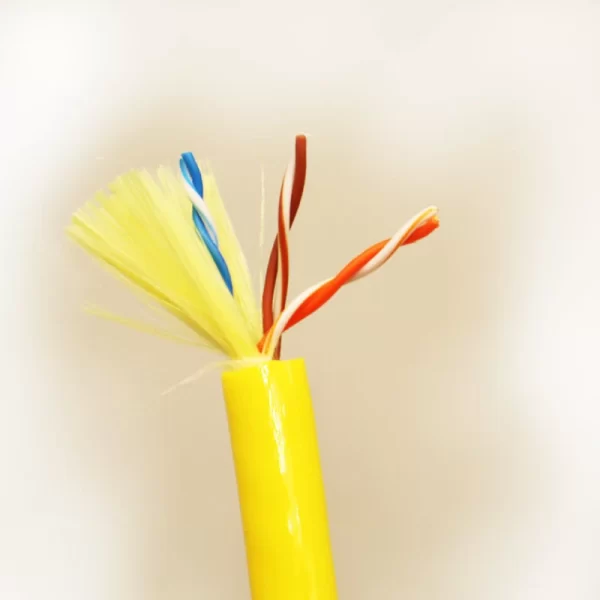

Cable structure：
– 3 twisted pair 26AWG (0.14mm2)
Insulation material: PE
Tensile strength: 50kg (Kevlar filling)
Inner jacket: PUR foam
Outer jacket: PUR
Jacket color: Yellow
Temperature range: -30~105℃
Outer diameter: 7.8 mm
Depth rating: 500 meters
Characters: Oil resistant, flame retardant, anti-hydrolysis, anti-microbial, anti-ultraviolet, etc.

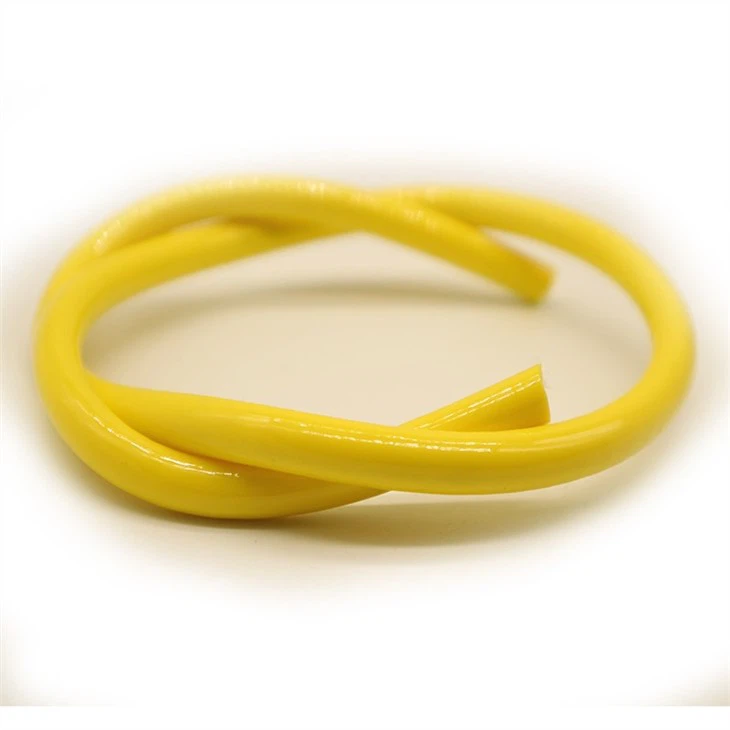

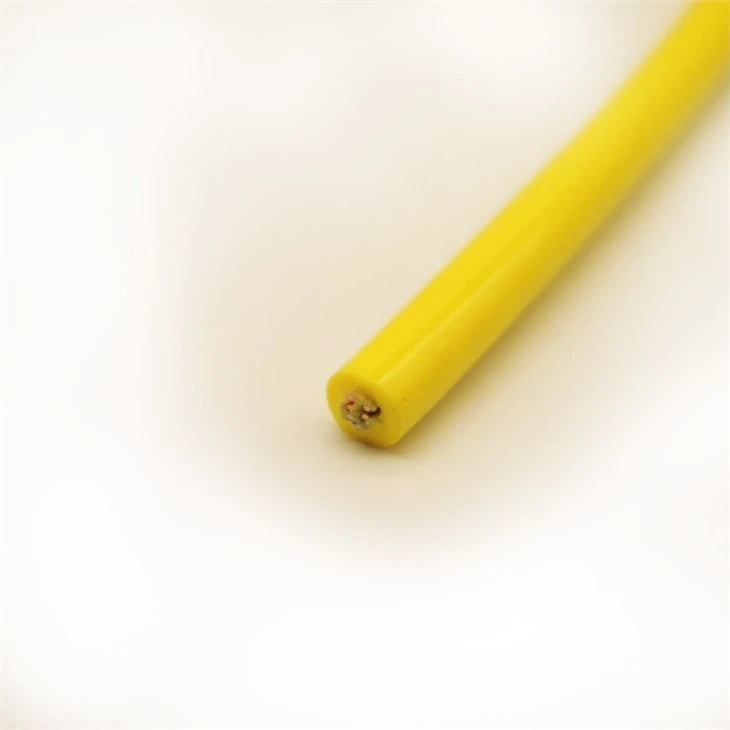

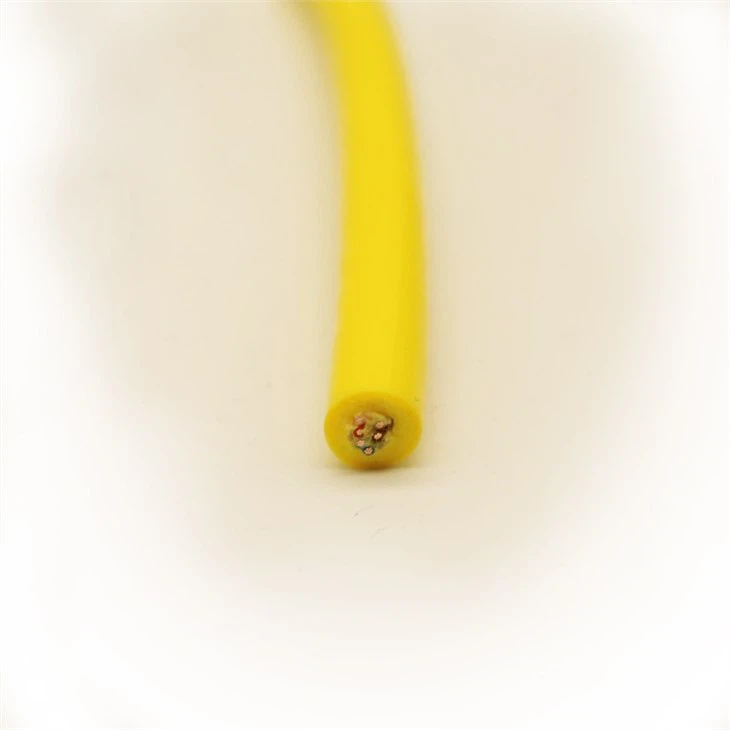

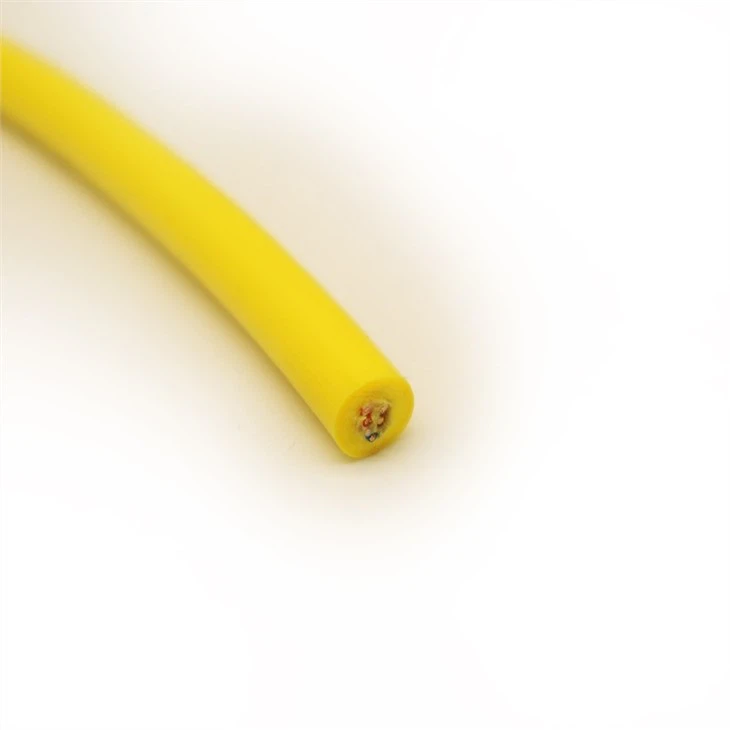

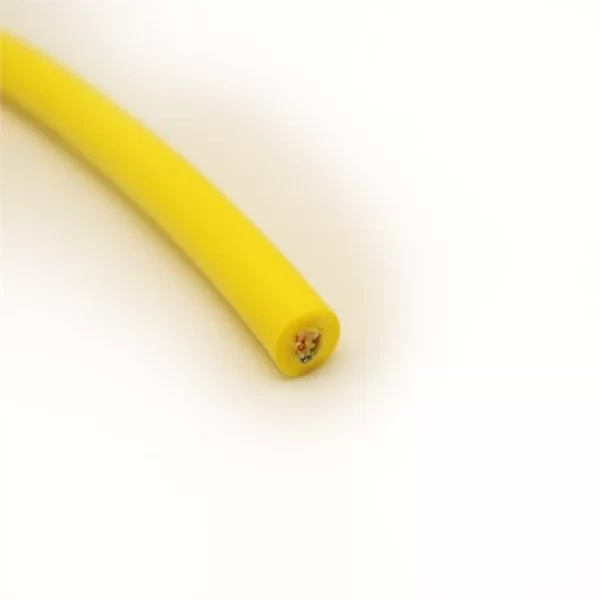

This 6 core floating cable is an ROV Tether. It is neutrally buoyant, has a breaking strength of 50kg , and is embedded with water blocking fibers to seal any leaks. The core of the cable contains Kevlar wire for strength and polyester wire for space filling. Both fibers are impregnated with a waterproofing compound to prevent any leakage caused by nicks or cracks in the cable.
The high-visibility yellow polyurethane foam jacket resists abrasion and provides neutral buoyancy.The stiffness of the cable is designed to be flexible enough to provide sufficient freedom for your ROV, but it is hard enough to not be easily twisted.
If you don’t find the model you need, please do not hesitate to contact us!https://www.bofan-cable.com/product-category/rov-tether/
