Spring Cable also called spiral cable. When producing spiral cables, our many years experience has developed wealth of expertise in servicing customer needs. Flexibility and durability are key factors for applications requiring long-term high performance. It is also crucial to have the appropriate insulation and the right conductor material. We have specially developed and optimized these spiral cables for applications such as data and current control.https://www.bofan-cable.com/product-category/spiral-cable/

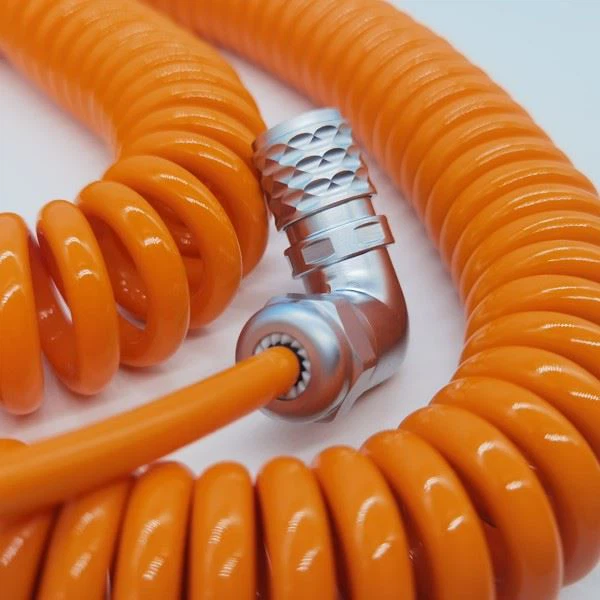

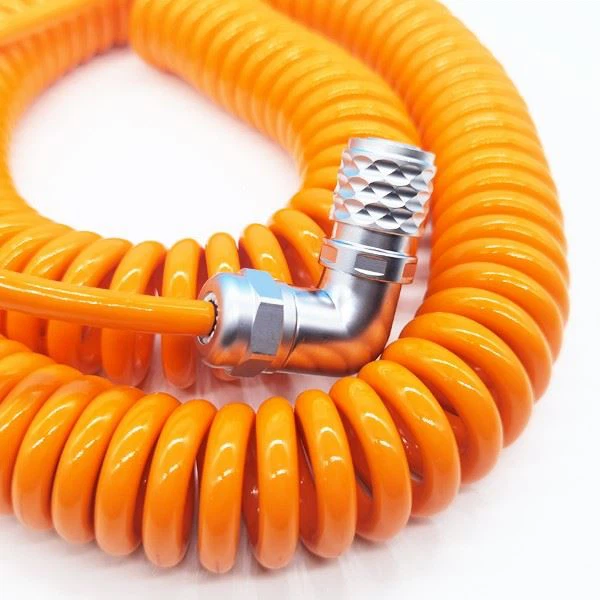

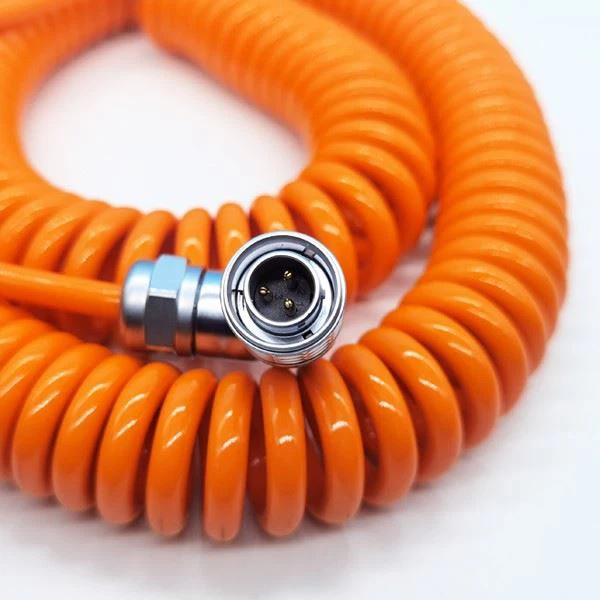

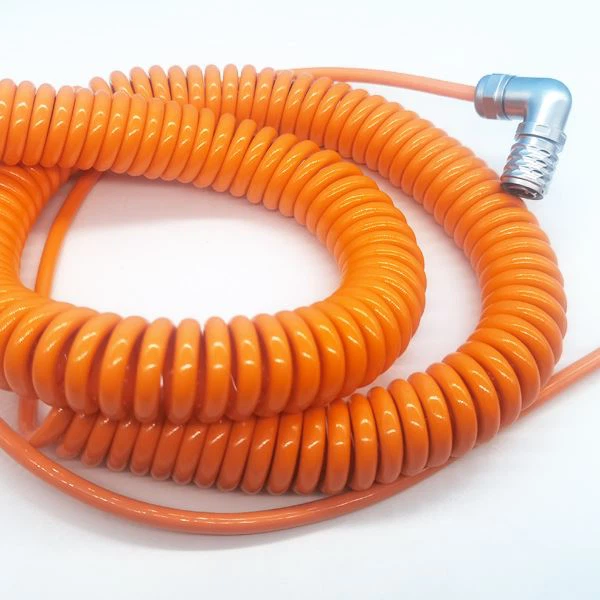

Application: This spring cable is our custom made cable with connector on one side.
Cable structure：
– 3 core 0.75mm2 (18AWG)
– Conductor: Stranded oxygen-free copper
– Insulation material: PVC
– Insulation colors: blue, brown, black
– Jacket material: PVC
– Jacket color: Orange
– Cable diameter: 6.0mm
– Coiled cable diameter: 29.1mm

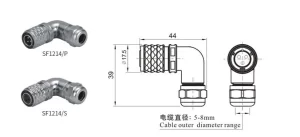

– Connector SF1214/P
Features:
Temperature range: -40 to 80 ℃
Extension lengths of up to 4.5x the unextended spiral length
High restoring force
Suitable for indoor and outdoor use, suitable for use in damp environments.
Good oil resistance, chemical resistance, wear resistance, cold resistance, weather resistance
Can custom different functions according to our client’s requirements, for example, low temperature, thinner diameter, high tensile strength, etc.
