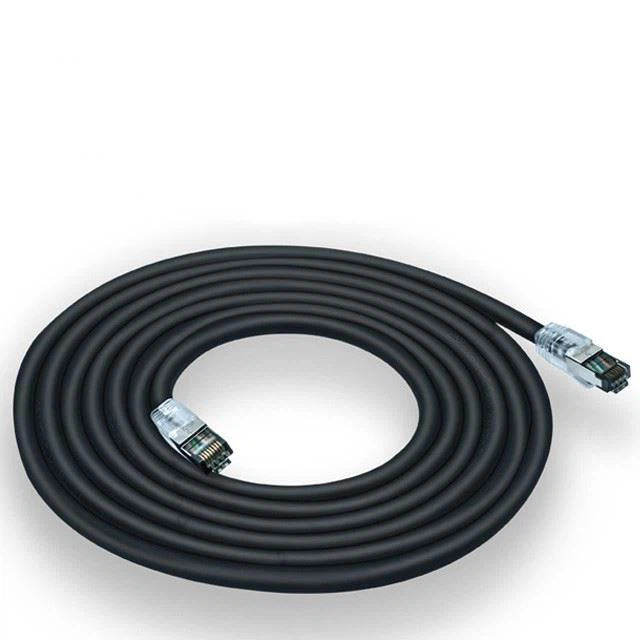

This industry network cable is cat5 cable which designed and manufactured according to the drag chain cable process.
Applications:

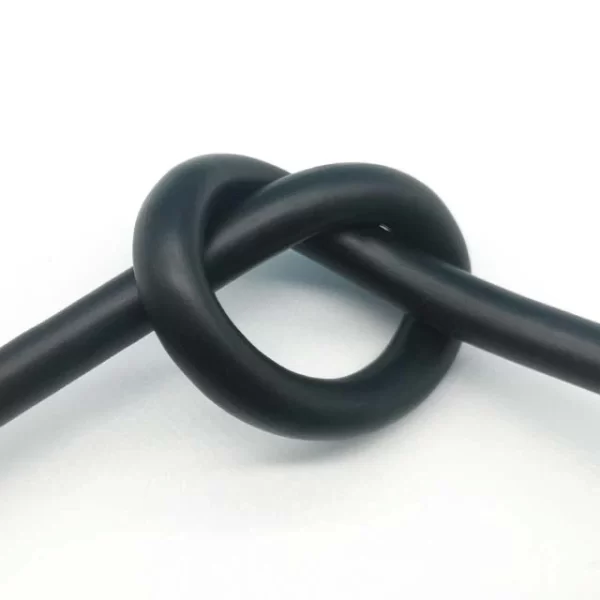

The special network cable for the towline is suitable for electrical instruments, electronic equipment and automation devices. It can effectively resist electromagnetic interference. In view of the special design of the cable, the cable is suitable for frequent moving and frequent bending.

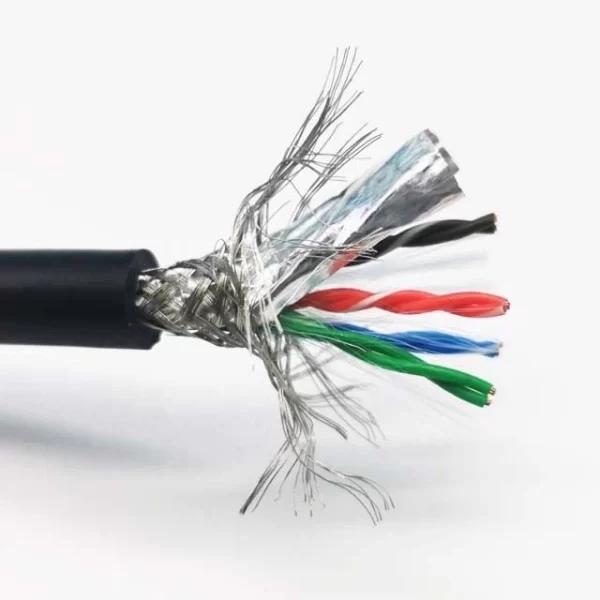

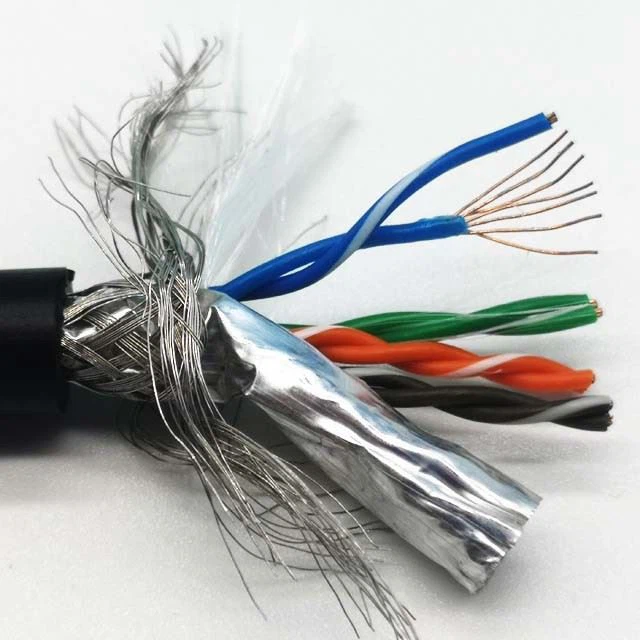

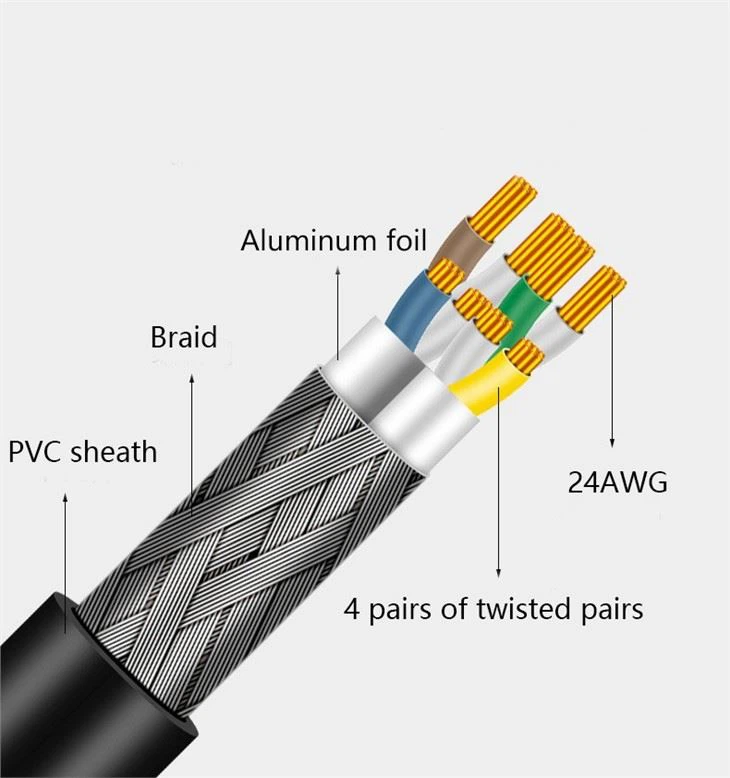

Cable structure:
– 4 twisted pair 24AWG
Conductor material: pure oxygen-free bare copper wire
Conductor structure: 7/0.19 (±0.004) mm
Stranded outer diameter: 0.57mm
Insulation material: HDPE (high density polyethylene)
Insulation outer diameter: 0.95±0.05mm
Insulation color: orange/white-orange, green/white-green, blue/white-blue, brown/white-brown
Sheath material: nitrile elastomer / polyurethane material
Rated temperature: -20 ~ +80℃ (towing chain cable can be customized temperature -60 ~ +105℃)
Characteristic impedance: 100±15 ohm
Bending radius: 5D
Voltage: 300/300 V
Test voltage: 3000V according to DIN VDE 0281 part 2
Customization available!
If you don’t find the model you need, please don’t hesitate to contact us.
