Application: Geophysical cable also called Inclinometer cable, we used it for geophysical exploration operations. We used it in petroleum, hydropower, coal, metallurgy and engineering geology field operation for transmitting signals. Geophysical cable as geological drilling logging cable for all kinds of geological drilling vertex angle, azimuth measurement and transmission of downhole logging signals. For more details, welcome to visit our website: http://www.bofan-cable.com

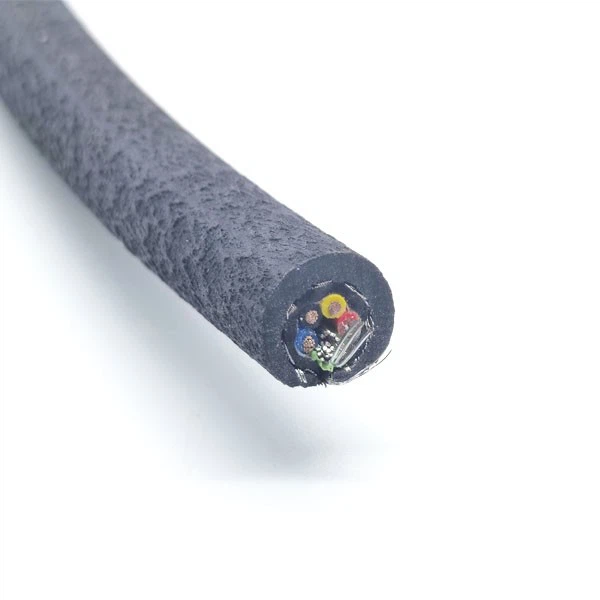

Cable structure:
Conductor: stranded oxygen-free copper wire for flexiblility and corrosion resistance.
Tinned copper wire or sliver plated copper wire according to CDE0295 Class6
Insulation: FE/TPEE
Shield: Tinned copper braiding/Aluminum foil
Filler: Light weight aramid fibers (Kevlar) or steel wire as strength member (we can custom it, 100-1000kg)
Inner jacket: TPU (Can be customized)
Outer jacket: TPU fog or transparent jacket
Hardness: 90A, 95A
Temperature range: -35-90℃

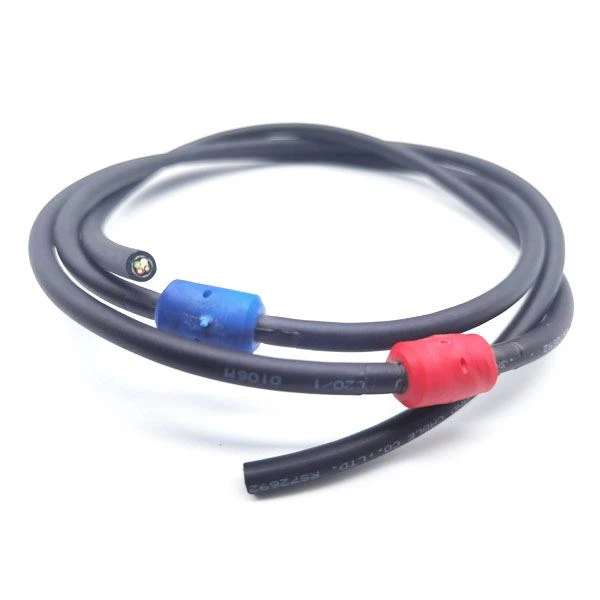

Mark: Every 0.5 meters (according to customer requirements) .The mark can be divided into two Colors (every 0.5 meters and every 1 meter)
Mark material: copper mark, plastic mark or print inside the transparent outer sheath
Scale: Laser printing
Specifications: 4*0.3 OD: 6.0-6.8mm, 4*0.5 OD:7.8- 8.5mmhttps://youtu.be/RyESZnnzPYc?si=pt8Usrm9hP_SCzO9
Characters:
High precision and fast response
Extension rate of outer sheath < 98%
Good thermal aging performance
Stay flexible at low temperatures
Excellent water resistance, weather resistance, microbial attack resistance, etc.
