Elevator Cable Crane Cable

Lift Cable or Elevator Video Cable with Coaxial China Manufacturer

Conductor: Multi-strand finely stranded oxygen-free copper wire
Coaxial: 75-2 coax
Strength member: Steel wire on both side
Outer Sheath: PVC

GET A QUOTE
CONTACT US

Application: Video transmission of elevator monitoring system

Cable structure:
– 75 ohm coaxial

Conductor: Multi-strand finely stranded oxygen-free copper wire
Coaxial: 75-2 coax
Strength member: Steel wire on both side
Outer Sheath: PVC
Color: Grey
Rated voltage: 450/750V
Test voltage: 3000V
Min.bending radius: 10 * thickness of cable

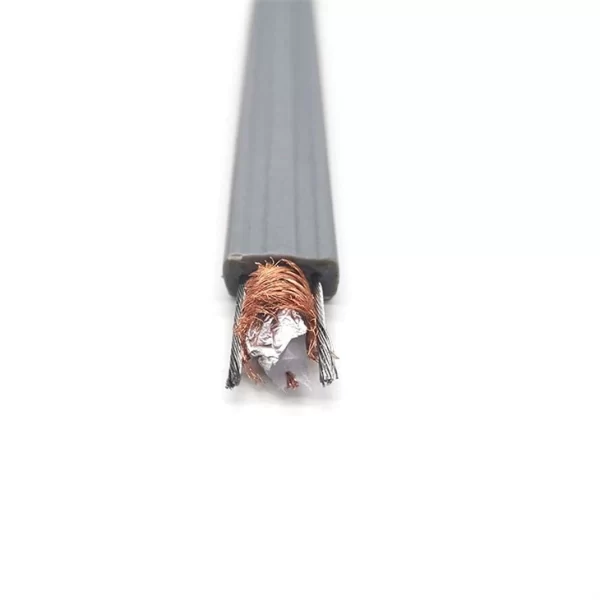

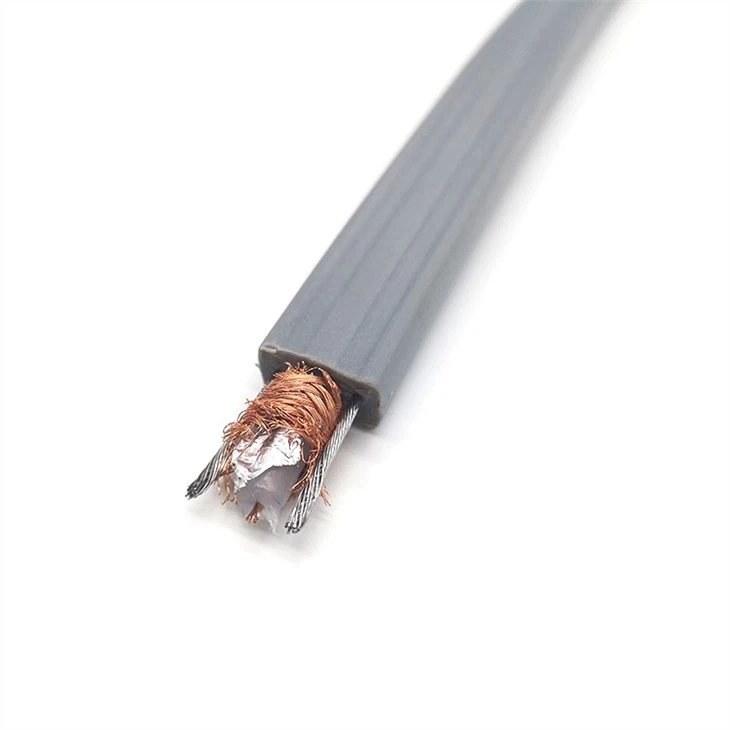

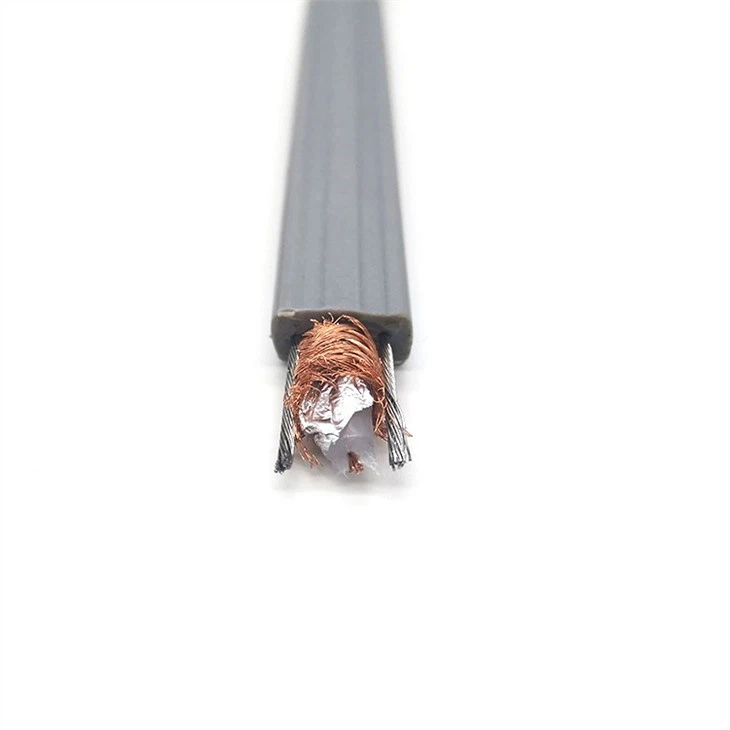

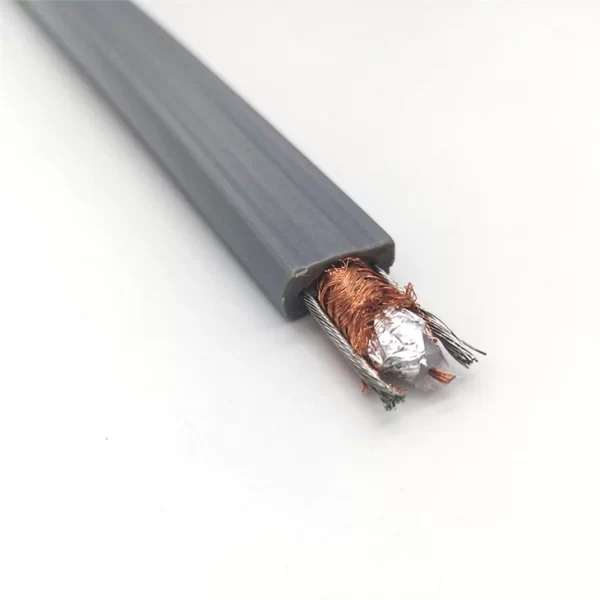

The lift cable also called elevator video cable is a flat wire composed of coaxial 75-2+ two steel wires. This kind of cable is strong toughness, light weight, can be used easily in a variety of large and small equipment. Flat cable has the characteristics of heat radiation, cold resistance, acid and alkali resistance. The ambient temperature ranges from -10 ° C to 70 ° C.
