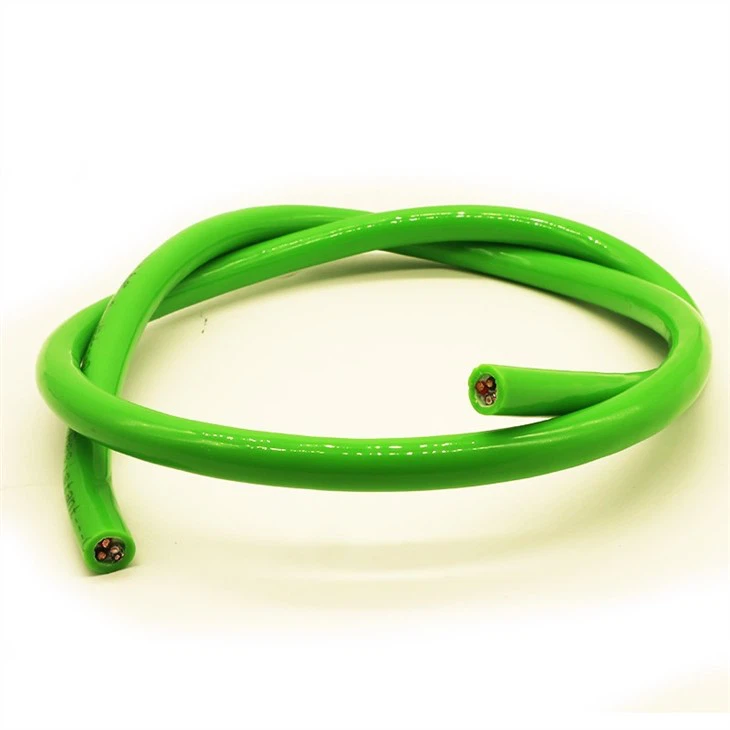

Product Introduction
Application:
Outdoor Hybrid Cable mainly used for signal transmission and power supply for rugged surrounding applications.

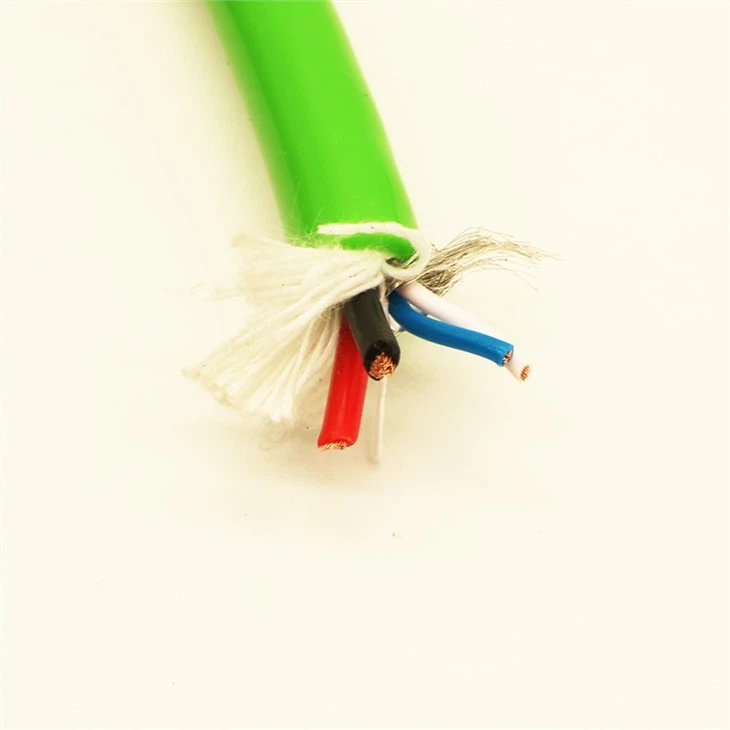

Product Structure:
– 1 pair shielded 20AWG (0.5mm2)
– 2 conductor 16AWG (1.5mm2)
Conductor: Stranded oxygen-free copper wire
Insulation: PE
Wrapping: Non-woven
Shield: tinned copper braiding and aluminum foil
Outer Sheath: PUR
Color: Green
Outer diameter: 9.8±0.5mm
The Outdoor Hybrid Cable is a wear-proof cable used for different environments outside. It is used to supply electrical power to and between outdoor and indoor, underwater and land, etc.
This green cable is produced from high-quality materials and is designed for use in extreme weather conditions. It has a long life expectancy when in an undisturbed installation. Should the cable require replacement, it is normally due to physical damage rather than wear.
The outer sheath is produced out of highly wear-proof PU (Polyurethane) surrounding the individual conductor insulation. Such construction ensures a very strong cable and protects the copper from wear.
