Application: These high quality sewer camera cables are suitable for pipeline robot dragging, lighting, control, TV camera, signal transmission, power supply, etc. Widely used in downhole measurement and monitoring, underground geophysical prospecting, exploitation, and exploration.

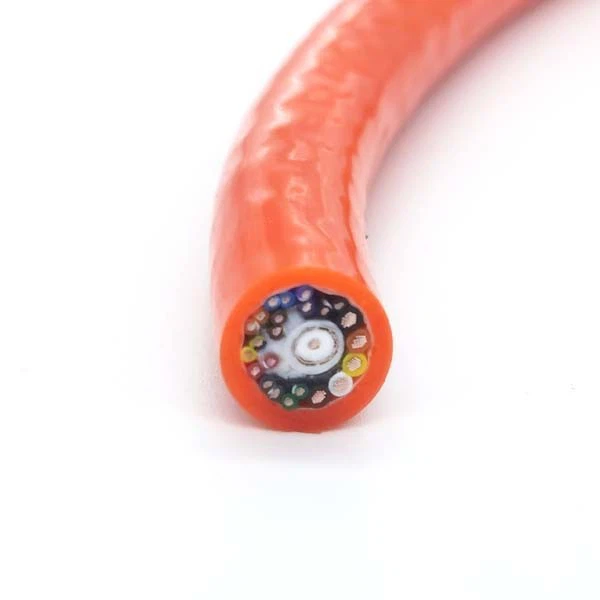

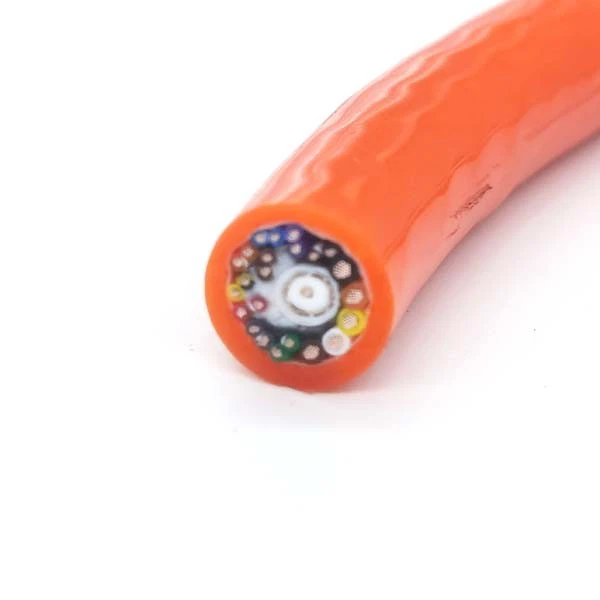

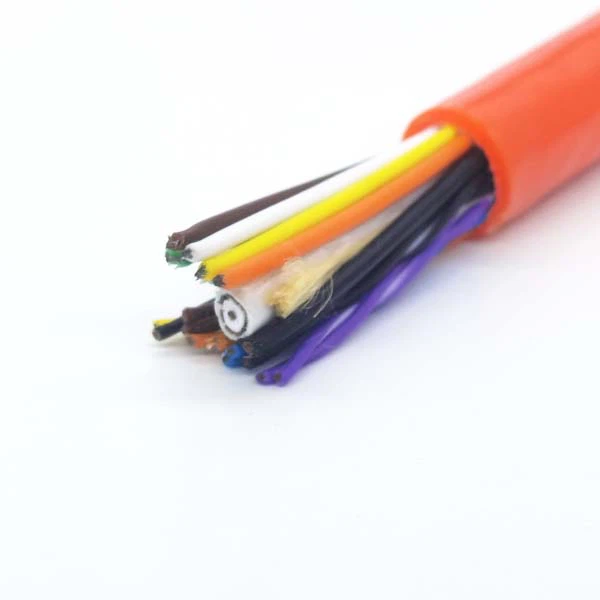

Cable structure:
– 5 core 0.34mm2 (22AWG)
– 18 core 0.1mm2 (27AWG)
– 75 ohm coaxial (75-2)
Conductor: Strand oxygen-free copper wire, in line with VDE0295 CLASS6 standard
Coaxial: 75-2, suitable for video transmission less than 200 meters
Insulation: PE
Filling: Kevlar as strength member, tensile 100kg
Outer sheath: PUR
Sheath color: Orange

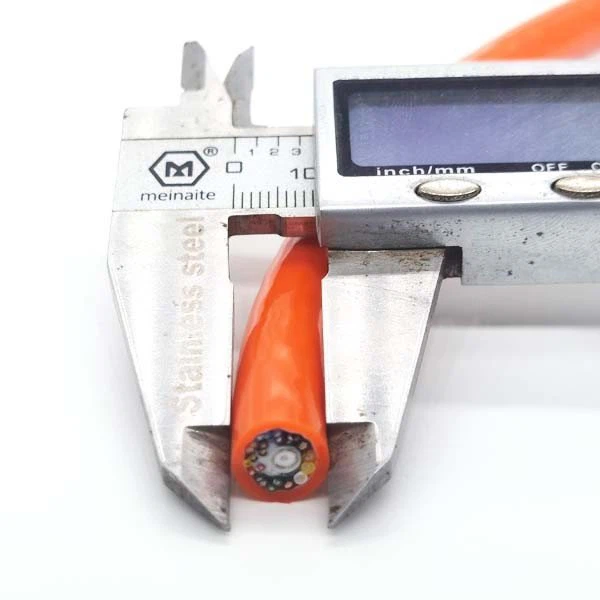

Outer diameter: 10.3mm
Character: Wear resistance, corrosion resistance, acid and alkali resistance, oil resistance, etc.
Temperature range: Fixed installation: -40℃ to +90℃, Mobile installation: -30℃ to +90℃
Pipeline robot cable can be extremely good to adapt to the field construction of complex terrain, frequent receiving and receiving, severe climate and other working conditions, with corrosion resistance, bending resistance, wear resistance, cold resistance, tensile and insulation performance of good characteristics. It has been proved by users that its mechanical properties, electrical properties and waterproof properties can meet the requirements of field operations, and it is a special cable used in field protection such as downhole detection.
If you don’t find the model you need, please do not hesitate to contact us!
