Umbilical Cable as a high watertight and Torque balanced multicore hybrid cables, which are suitable for ships, offshore oil platforms, deep-sea resource exploration, etc. In addition, the cables supply e.g. underwater robots with data and energy, both in fixed and mobile systems, i.e. also when a robot is pulled through water on the seabed.https://www.bofan-cable.com/product-category/underwater-cable/

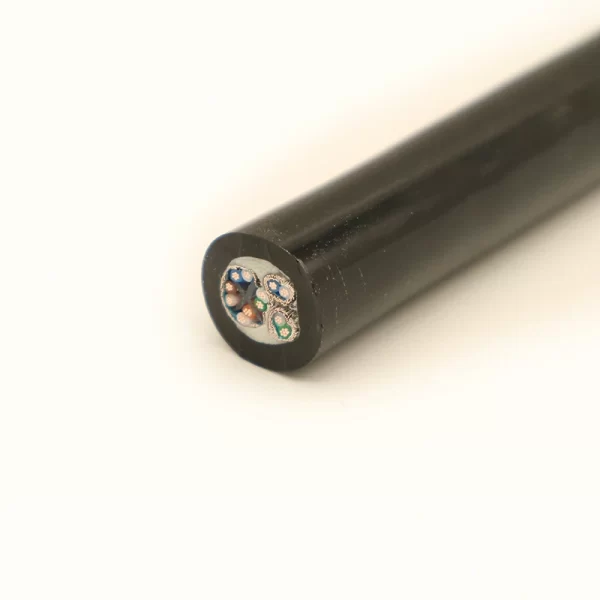

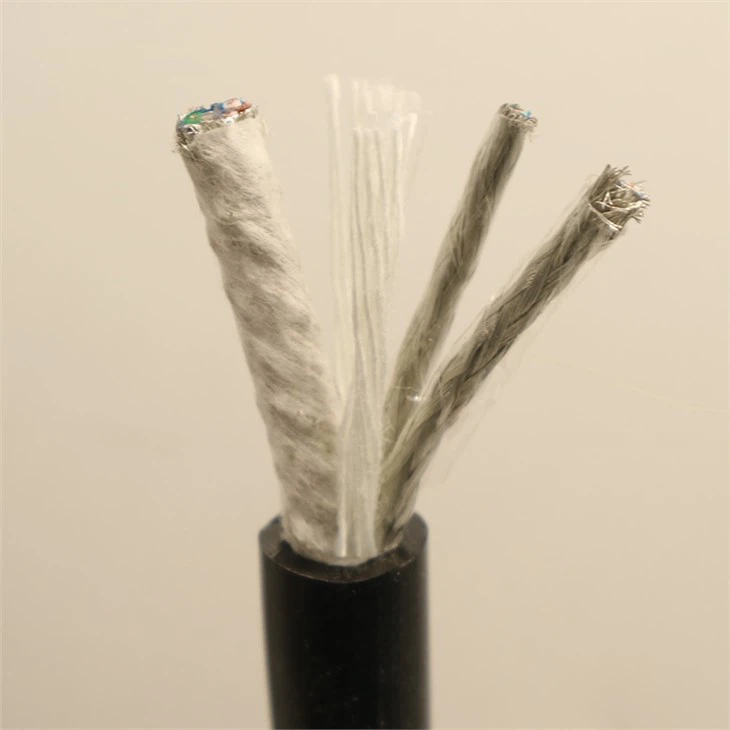

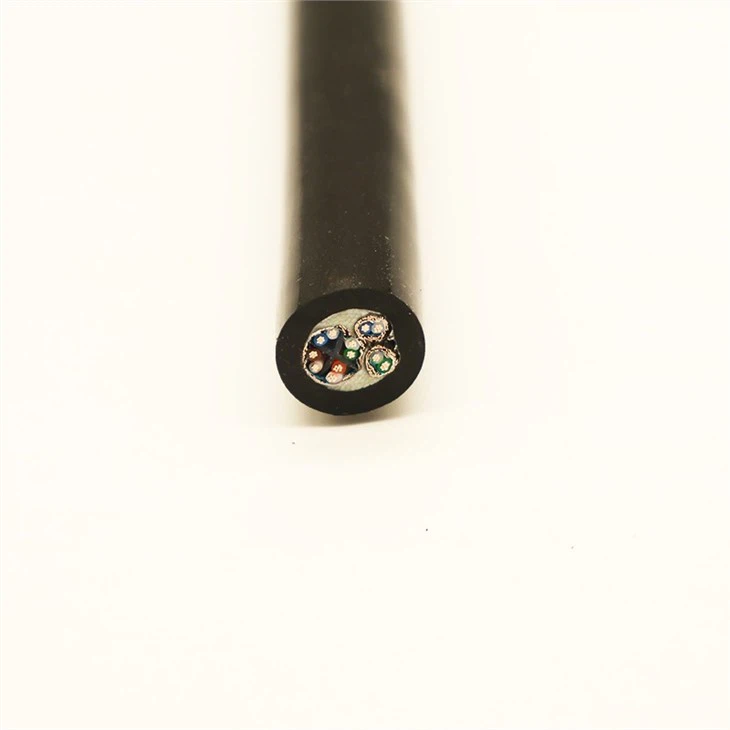

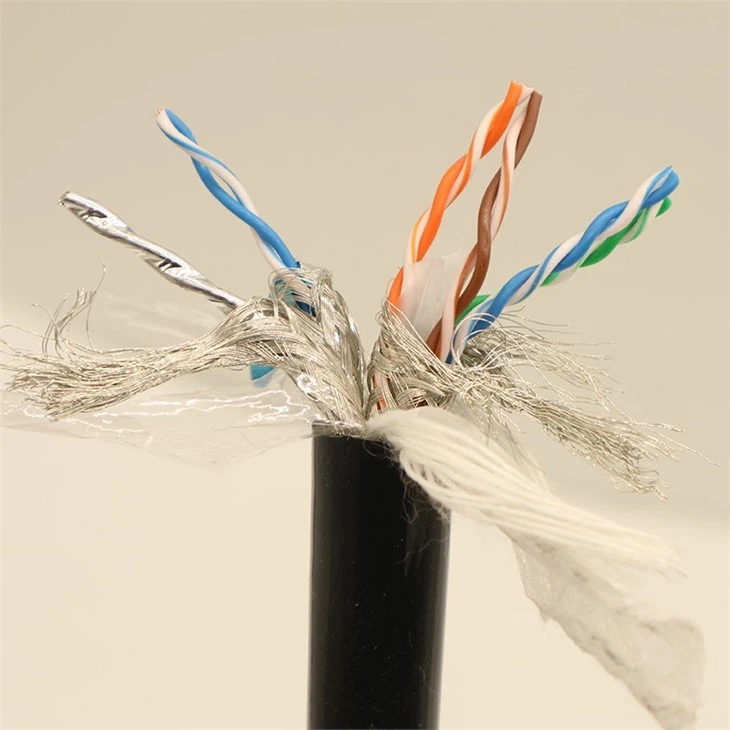

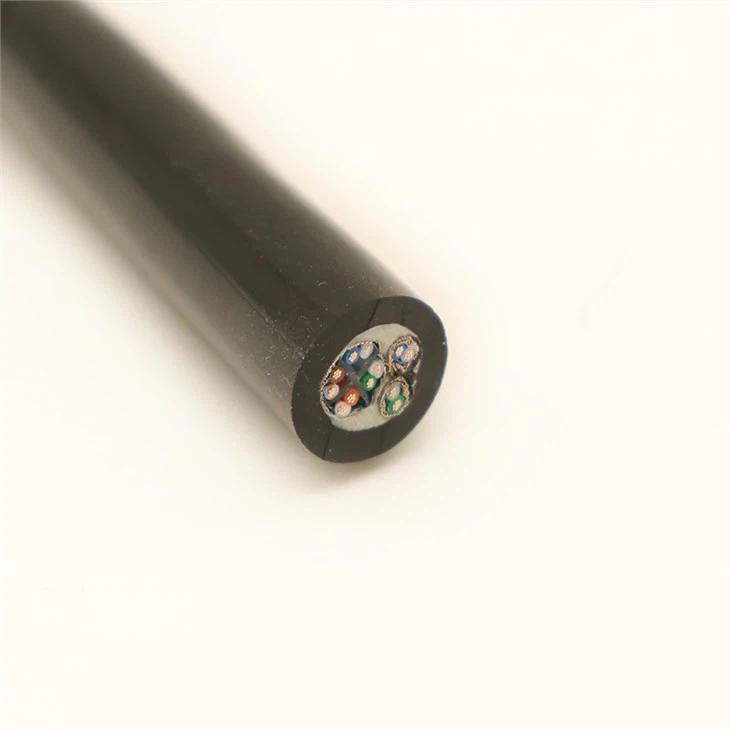

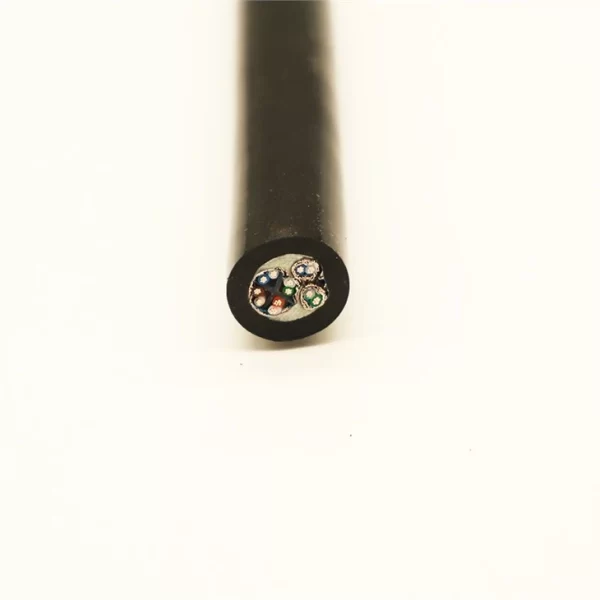

Product Structure:
– STP CAT6 (4*2*23AWG)
– 2 twisted shielded pairs of 24AWG (0.2mm2)
Conductor: Stranded oxygen-free copper wire
Insulation: PE
Wrapping: Non-woven
Shield: tinned copper braiding and aluminum foil
Outer Sheath: PUR
Color: Black
Outer diameter: 10.9 mm
Umbilical Cable also called watertight cable is a wear-proof cable used for different environments outside. It is used to supply electrical power to and between outdoor and indoor, underwater and land, etc.
This cable is produced from high-quality materials and is designed for use in extreme weather conditions. It has a long life expectancy when in an undisturbed installation. Should the cable require replacement, it is normally due to physical damage rather than wear.
The outer sheath is produced out of highly wear-proof PU (Polyurethane) surrounding the individual conductor insulation. Such construction ensures a very strong cable and protects the copper from wear.https://youtube.com/shorts/qdtzXu9-faE?si=SSxZr0do9TiYGVwN?rel=0
