Underwater Cable

Subsea Cable With Underwater Power & Signal Wire

Insulation: PE
Shielding: Aluminum foil and tinned copper wire braided shielding (density above 85%)
Wrapping: Wrapping with non-woven fabric
Outer Sheath: PUR

GET A QUOTE
CONTACT US

Application: Subsea cable mainly for underwater equipment power connection, controlling, signal transmission, etc.

Product Structure:
-4 core 0.5mm2 (20AWG)
-2 twisted pair 0.2mm2 (24AWG)

Conductor: Multi-strand finely stranded oxygen-free copper wire, in line with VDE0295 CLASS6 standard
Insulation: PE
Shielding: Aluminum foil and tinned copper wire braided shielding (density above 85%)
Wrapping: Wrapping with non-woven fabric
Outer Sheath: PUR
Color: Grey

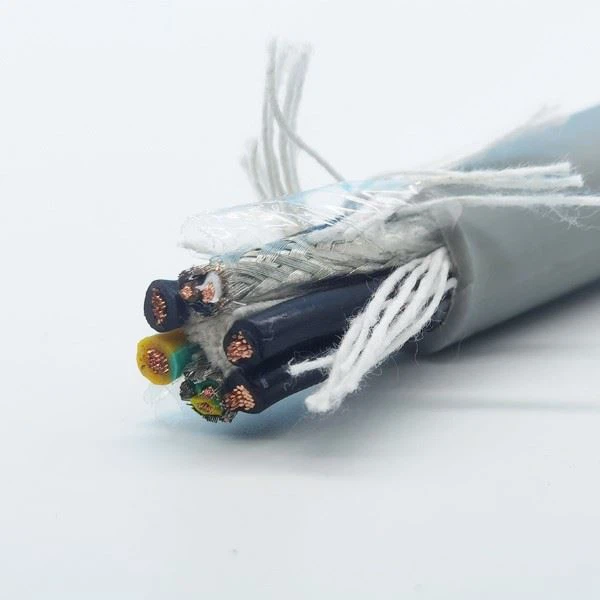

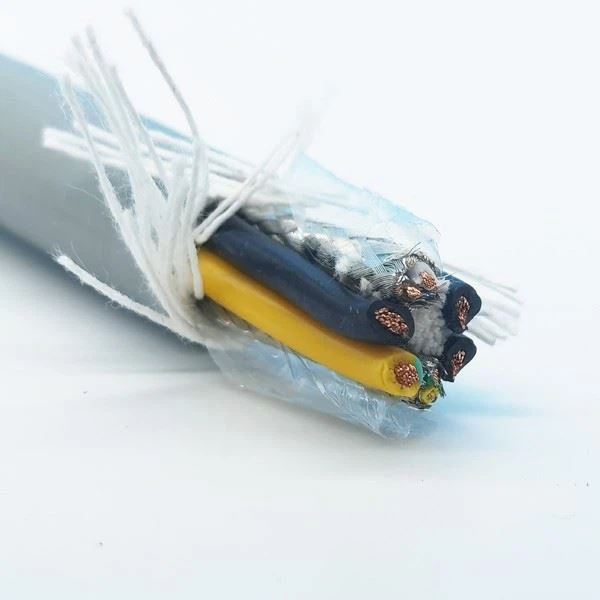

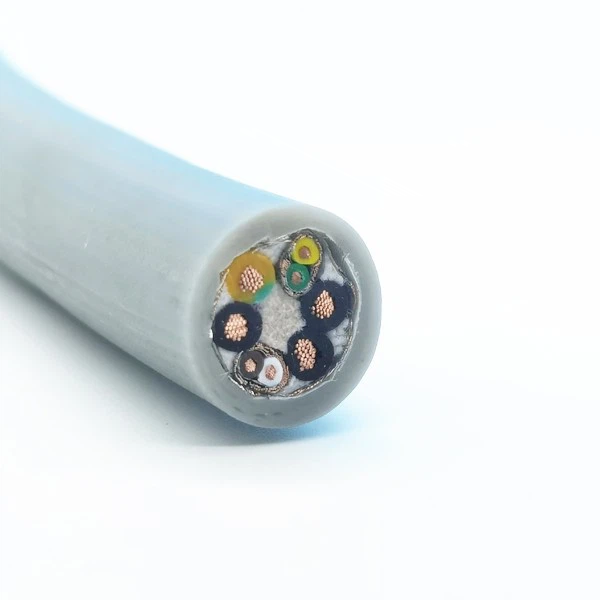

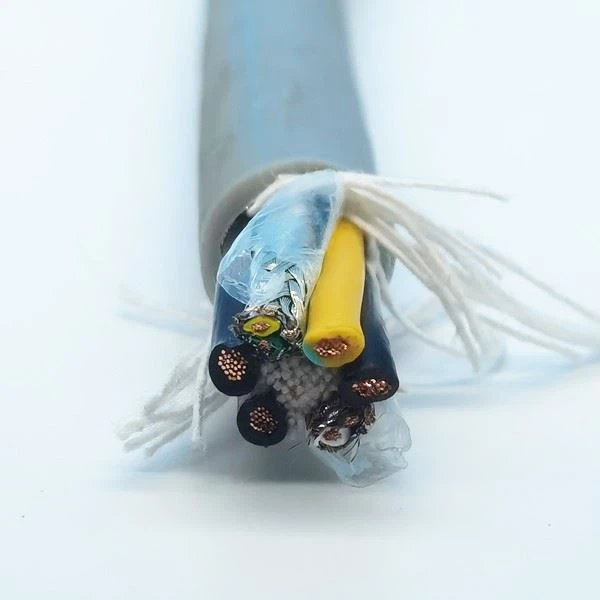

The subsea cable also called composite underwater cable structure is composed of RS485 communication cables and power cables. The number of cores of the power cable is 4 cores. 0.5/1.0/1.5 square are optional. The RS485 communication line is composed of a pair of 24AWG twisted pairs, which is a high-end wire for underwater applications. The underwater umbilical cable is highly flexible, resistant to underwater pressure, seawater corrosion, underwater low temperature, oil resistance, ultraviolet resistance, wear resistance, flame retardant, long service life, suitable for the rapid installation of underwater instruments and equipment.
