Application: Underwater submarine hybrid cable mainly for underwater equipment power connection, internet connection, signal transmission.

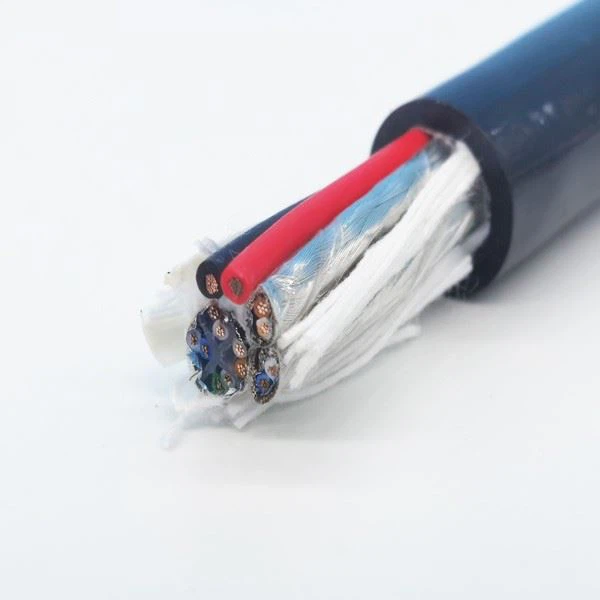

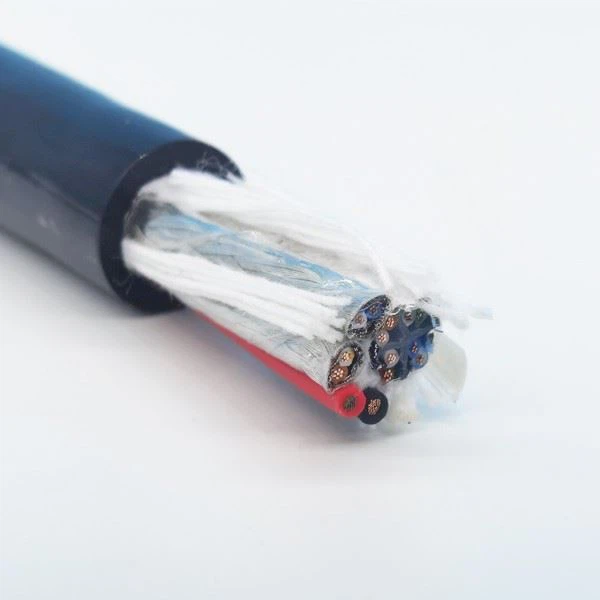

Product Structure:
– 2 core 0.5mm2 (20AWG)
– 2 twisted pair 0.2 (24AWG)
– STP Cat6 network
Conductor: Multi-strand finely stranded oxygen-free copper wire, in line with VDE0295 CLASS6 standard
Insulation: PE
Shielding: Aluminum foil and tinned copper wire braided shielding (density above 85%)
Wrapping: Wrapping with non-woven fabric
Outer Sheath: PUR
Color: Black
The composite underwater cable structure is composed of network monitoring cables, RS485 communication cables and power cables. The network cables generally include Cat5, Cat5E, Cat6 and Cat6A network cables. The number of cores of the power cable is usually 2-3 cores. 0.5/1.0/1.5 square are optional. The RS485 communication line is composed of a pair of 24AWG twisted pairs, which is a high-end wire for underwater applications.
